Description
Category: professional.

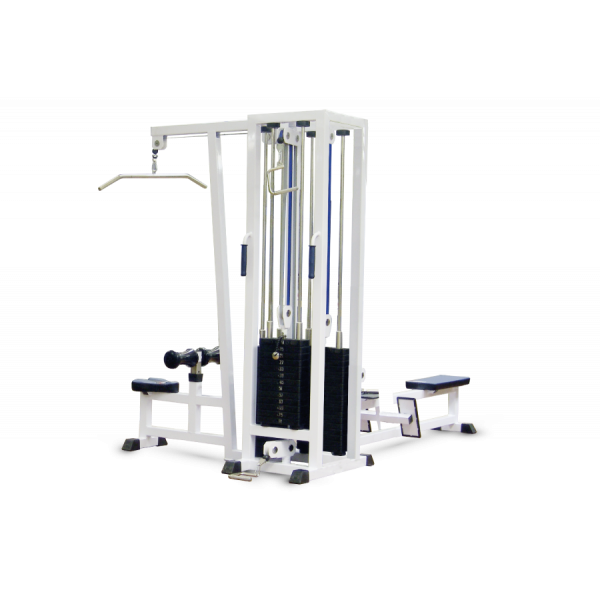

Universal, multifunctional trainer consisting of 3 independent stations:
1. Vertical pull for training the back muscles (broad, trapezius, straightening).
2. Horizontal pull for training the back muscles (broad, trapezius, erector spinae).
3. Block frame for training the triceps muscle of the shoulder.
Optimal solution in conditions of limited space in the gym.
Exercise.
1. Vertical pull.
2. Horizontal pull.
3. Triceps extensions.
Description:
– The supporting structure is made of 60×60 mm profile, wall thickness 2 mm.
– The structure has radial bends, which significantly increases its strength.
– The frame is painted by powder coating method.
– The weight block consisting of steel plates covered with PVC is used as a weighting device, which makes the work on the simulator silent.
– The weight block is driven by a polyamide belt with a width of 20 mm, thickness of 3.1 mm, tensile strength of 390 N/mm2, with a maximum load of 1500 kg.
– The force is transmitted through 1-2 roller blocks, which simplifies the design and increases the reliability of the mechanism.
– The trainer is equipped with handles for pulling.
– Load adjustment is performed by adjusting the adjusting pin (lock) fixed on the elastic cord.
– The flute and rails are plated with complex nickel and chrome plating.
– All seats are bolted and made of five-layer plywood 18 mm thick. Polyurethane foam and synthetic leather are used as filler and upholstery.
– Ball bearings installed on all rotational units ensure long and comfortable use of the simulator.
– On the “vertical pull” section, the leg restraint rollers are adjustable to the athlete’s height and have 5 fixed positions.
– The rollers are made of polyurethane foam.
– When performing the “Horizontal pull” exercise, the steps are used, which are made of five-layer plywood 18 mm thick and polyurethane foam.
– The “Horizontal Pull” section has a platform with rubber pads to hold the handle.
– To eliminate slipping, the product is equipped with PVC footrests
